Fuji Electronics Smt Machine,Fuji Electronics Smt Pick and Place Machine NXT-3

FOB Reference Price:Get Latest Price
$75,000.00 - $90,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Model Number:
Smt Machine NXT-3
Electronics Smt Machine
Applicable Components:
Product name:
Fuji Smt Machine

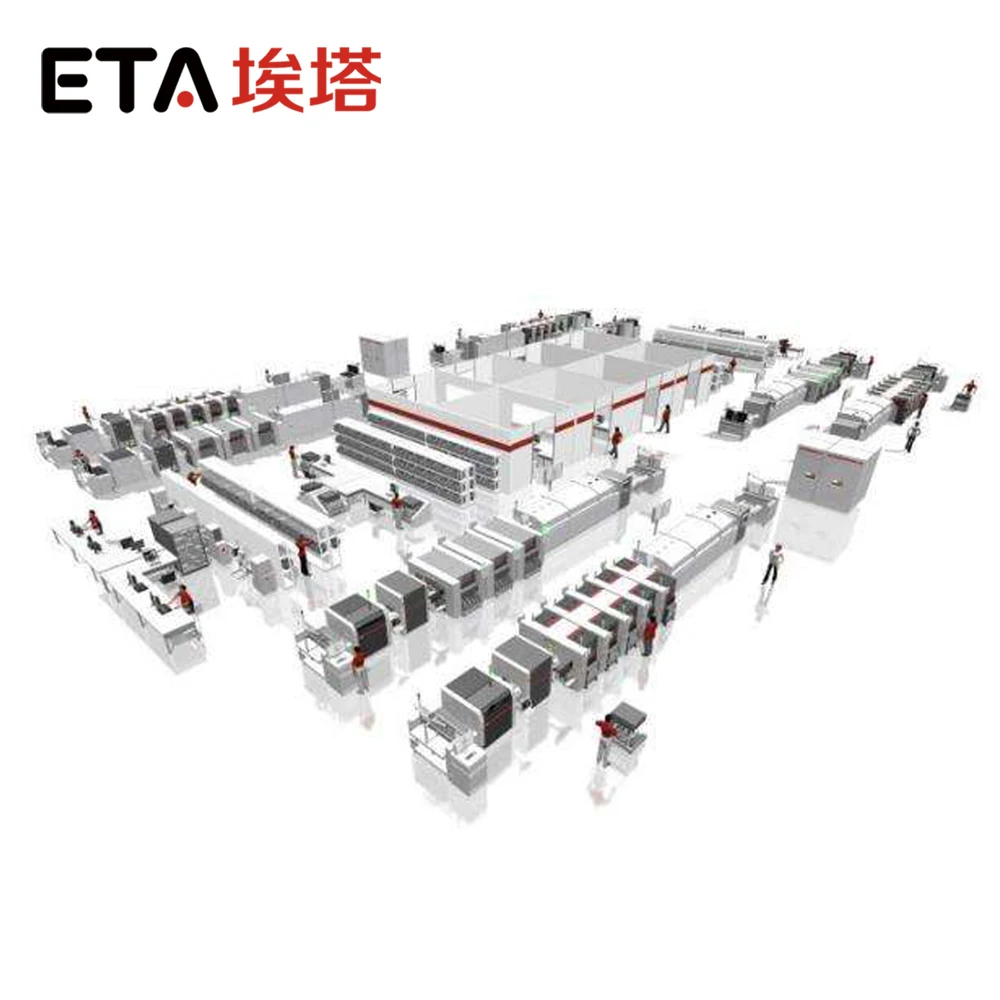

SMT PCB Assembly Production Line
1 Year
Power Supply:
AC220V 50Hz / AC110V 60Hz
Component available:
Minimum 01005-38*38*8.5mm (48*48 Optional)
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Vacuum packed in wooden cases
Picture Example:
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

Fuji Electronics Smt Machine,Fuji Electronics Smt Pick and Place Machine NXT-3

The NEW NXT III SMT machine is a highly productive, multi-functional modular placing machine. Built for speed, it features a faster XY robot and tape feeders, as well as a new H24 head that achieves 35,000 chips per hour. The NXT III smt pick and place machine supports the smallest parts being used in mass production with extreme placing accuracy.

Features of FUJI Electronics Smt Pick and Place Machine:

Improved Productivity
A faster XY robot and faster tape feeders, as well as a newly developed "flying vision" parts camera, mean increased placing ability for all part sizes and types. The new H24 high-speed head achieves 35,000 cph (chips per hour) per module, a 30% improvement from the fastest speed of the NXT II.

03015 mm Part Support, +/- 0.025 mm Placing Accuracy
As well as supporting the smallest parts currently being used in mass production (0402 mm, 01005"), the NXT III can also handle the next generation of components heading for the market - 03015 mm parts. By improving machine rigidity and further refining its independent servo control and vision recognition technology, Fuji has achieved a placing accuracy for small chip parts of +/- 0.025 mm* (3 sigma, Cpk≥1.00).

Improved Usability
The GUI of the original NXT smt pick and place machine was widely praised for making use of intuitive and easy-to-understand pictograms instead of relying on language-based instructions. This interface is now combined with a touchscreen panel to make operation even easier. This reduces the number of button pushes required and makes selecting commands easier, as well as improving quality by reducing the chance of performing the wrong command.

High Compatibility
Many of the main units from the NXT II such as placing heads, nozzle stations, feeders, tray units, and feeder pallet exchange units can be used on the NXT III pick and place machine without any modifications.

FUJI Pick and Place Machine
FUJI SMT Machine M3
FUJI SMT Machine M6
Applicable PCB size
(L x W)
48 x 48 mm to 250 x 510 mm (double conveyor)*48 x 48 mm to 250 x 610 mm (single conveyor)
48 x 48 mm to 534 x 510 mm (double conveyor)*48 x 48 mm to 534 x 610 mm (single conveyor)
PCB loading time
For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules),
3.4 sec (transport between M6 III modules)
Part size
0402 (01005") to 7.5 x 7.5
Height:Up to 3.0 mm
1608 (0603")to 74 x 74 (32 x 100)
Height:Up to 25.4 mm
Placing accuracy
(Fiducial mark based referencing)
+/-0.038 (+/-0.050) mm (3σ) cpk≥1.00*
+/-0.030 mm (3σ) cpk≥1.00
Machine dimensions
FUJI SMT Pick and Place Machine
L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm

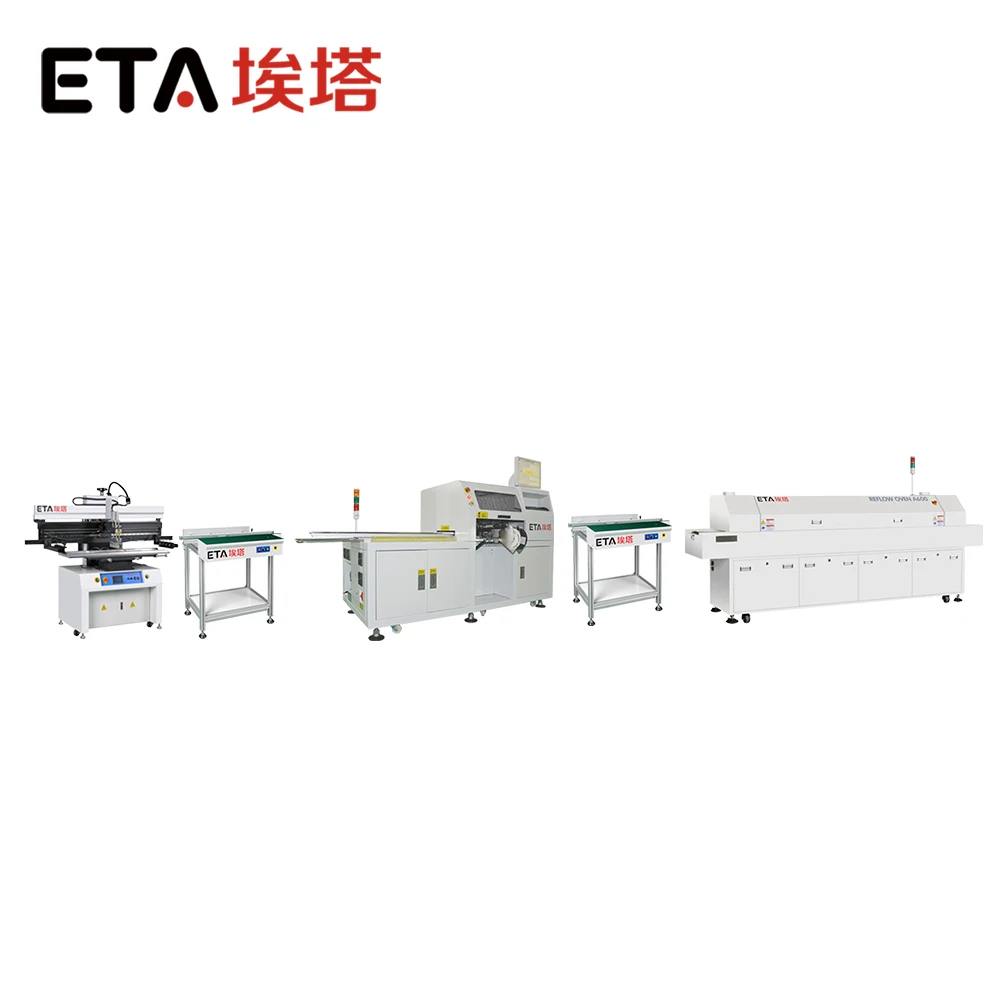

SMT Related Products

ETA Full Auto SMT Stencil Printer
Semi-automatic & Full-automatic

Pick and Place Machine

ETA Reflow oven
6-10 Heating Zones

ETA PCB Conveyor

ETA SMT Loader

ETA On-line / Off-line AOI

ETA is the leading manufacturer for smt machines and solution with 23 years' experience in China. And we are aslo the only Chinese SMT supplier for Huawei factory in China.

Successful Experience:
Eta's customer in 35 countries around the world
We have been helping customers to build a lot of new factories around the world.
Training more than 500 experts and technician for customers.
Became the most reliable Chinese partner for you.

Our factory

Our Customers

ETA Engineer installed in Iran

ETA Engineer installed in Iran

ETA Engineer installed in Argentina



Packing & Delivery
Packing Method:
※ Standard wooden package
Shipping Way:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ 35 Days


1.Are you a trade company or a manufacturer?
=》OEM & ODM service are available.

2.What is your delivery date?
=》The delivery date is about 35 days after receipt of payment.

3.What is your payment terms?
=》30% deposit in advance and 70% balance before shipment.

4.What your main customers?

Our Service

■ Pre-Consultation: provides professional SMT            solutions for the full line.
■ Factory Warranty: One-year warranty factory          service.
■ Installation: On-site installation and                          commissioning, to ensure smooth production.
■ Technical Training: provides professional training from Level 1 to Level 3.
■ Technical Support: provides 7 * 24 technical support.
■ Software Upgrade: offers lifetime free software upgrades for all products
