Manufacture Professional SMT Machine BGA Rework Station R6200 Motherboard Repair Welding Machine
- Model Number:
- BR120
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 35 Negotiable
- Machine Type:
-
Welding Manipulator
- Applicable Industries:
-
LED,MOBILE,Home appliance
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
ETA
- Voltage:
-
220V
- Current:
-
20A
- Rated Capacity:
-
5300W
- Rated Duty Cycle:
-
60%
- Dimensions:
-
L640*W630*H900 mm
- Weight:
-
68kg
- Usage:
-
Repair
- Certification:
-
CE ISO
- After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
- Warranty:
-
1 Year, 1 Year
- Type:
-
Other
- Name:
-
BGA Rework Station
- Function:
-
Repairing PCB
- Power:
-
AC 220V±10% 50/60 Hz
- Positioning:
-
V-groove, PCB support
- PCB size:
-
Max 410*370 mm - Min 65*65 mm
- BGA chip:
-
Max 80*80 mm - Min 2*2 mm
- Sensors:
-
1 pc
- Supply Ability:
- as your needs
- Packaging Details
- Wooden Case
- Port
- FOB shenzhen
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 35 To be negotiated
Manufacture Professional SMT Machine BGA Rework Station R6200 Motherboard Repair Welding Machine

1, Main Features:
◆ Widely used in the Chip Level Repair in laptop, PS3,PS4,XBOX360, Moblie Phone, etc.
◆ Rework BGA,CCGA, QFN, CSP, LGA, Micro SMD,LED etc.
◆ Automatic Romoving,Mounting and Soldering.
◆ HD Optical Alignment system for precisely mounting BGA and Components.
◆ Laser Positioning function for Fast Positioning BGA Chip and motherboard.
◆ BGA mounting accuracy within 0.01mm , Repair success rate 99.9%.
◆ Superior Safety Functions, with Emergency protection.
◆ User-friendly operation system.
2, Specification:
Model | ETA-BR120 |
PCB size(mm) | Max: 450*390mm; Min: 10*10mm |
BGA chip size(mm) | Max: 80*80; Min: 1*1 |
Total power | Max 5300W |
Power | AC 220V±10% |
Temperature control | K-type thermocouple (Closed Loop), independence temperature control |
Dimension(L*W*H) | 650*630*850mm |
Weight | 65kg |
3,BGA Rework Station ETA BR120 Illustration


HD Optical Alignment Lens

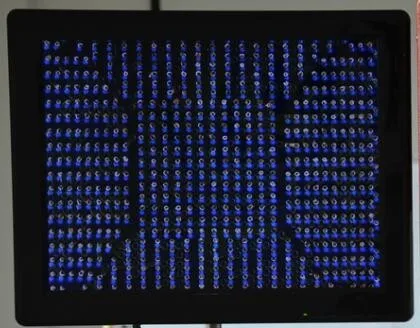

HD CCD Monitor for Alignment

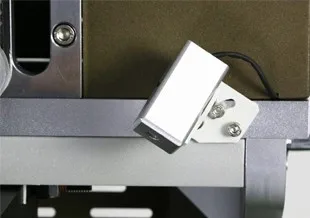

Laser for Fast Positioning BGA Chip

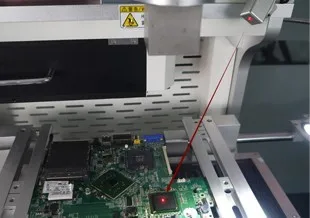

BGA Chip Fast Positioning

4, BGA Reballing Kit and Accessory Available

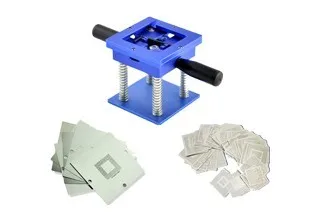

Reballing Stencils and Tools

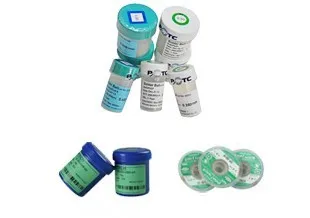

BGA Solder Ball, Flux, Solder Wick,etc
********Welcome to Contact Us for More Details and Latest Price********
ETA is the leading manufacturer for smt machines and solution with 23 years' experience in China. And we are aslo the only Chinese SMT supplier for Huawei factory in China.
Successful Experience:
Eta's customer in 35 countries around the world
※ We have been helping customers to build a lot of new factories around the world.
※ Training more than 500 experts and technician for customers.
※ Became the most reliable Chinese partner for you.
Our factory



Our Customers



ETA Engineer installed in Iran
ETA Engineer installed in Iran
ETA Engineer installed in Argentina
Exhibition



Certification




※ Standard wooden package
Shipping Way:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ 35 Days
1.Are you a trade company or a manufacturer?
=》OEM & ODM service are available.
2.What is your delivery date?
=》The delivery date is about 35 days after receipt of payment.
3.What is your payment terms?
=》30% deposit in advance and 70% balance before shipment.
4.What your main customers?
=》Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
■ Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Technical Training: provides professional training from Level 1 to Level 3.
■ Technical Support: provides 7 * 24 technical support.
■ Software Upgrade: offers lifetime free software upgrades for all products
