ETA Manufacture BGA Rework Station

FOB Reference Price:Get Latest Price
$5,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
R6200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Welding Manipulator
Applicable Industries:
led,tv,mobile
Place of Origin:
Guangdong, China
Brand Name:
ETA
Voltage:
220V
Current:
20A
Rated Capacity:
5300W
Rated Duty Cycle:
60%
Dimensions:
L640*W630*H900 mm
Weight:
68kg
Usage:
Repair
Certification:
CE ISO
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Type:
Other
Name:
BGA Rework Station
Function:
Repairing PCB
Power:
AC 220V±10% 50/60 Hz
Total Power:
Max 5300W
Positioning:
V-groove, PCB support
PCB size:
Max 410*370 mm - Min 65*65 mm
BGA chip:
Max 80*80 mm - Min 2*2 mm
Sensors:
1 pc
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN CASE
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

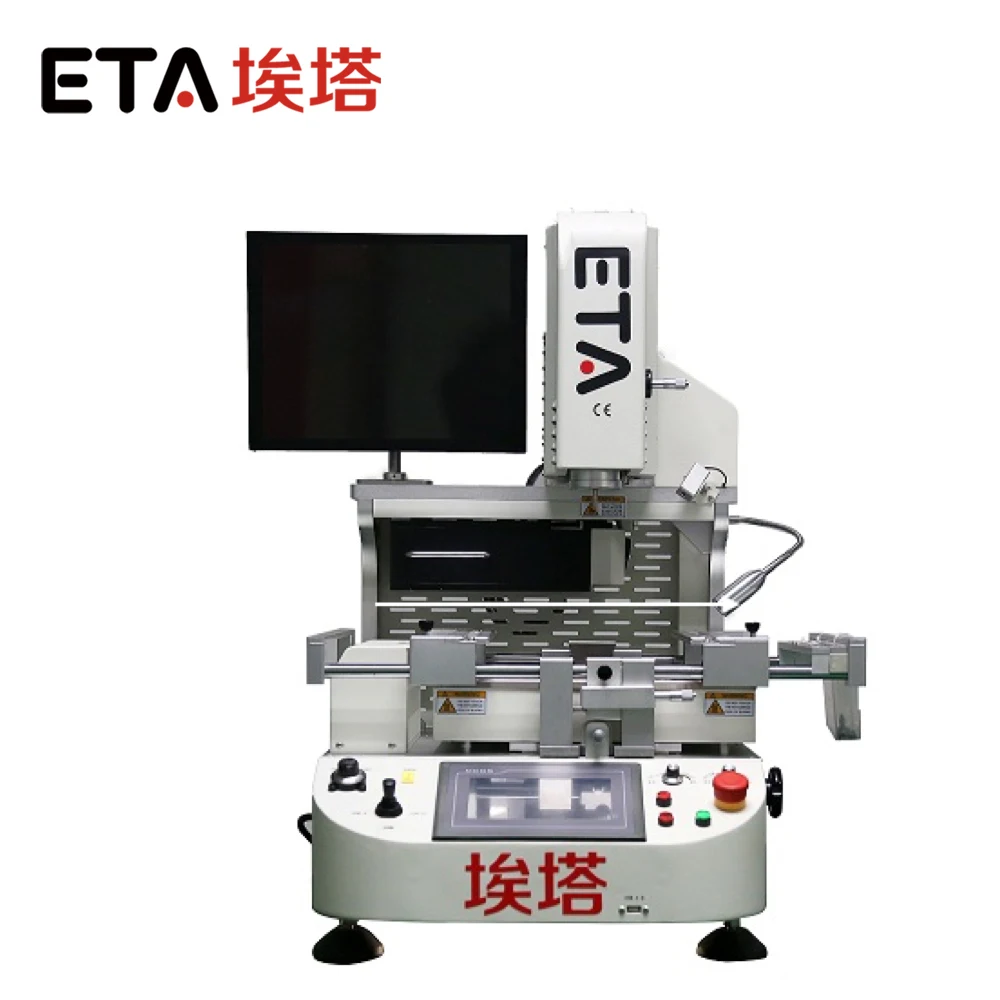

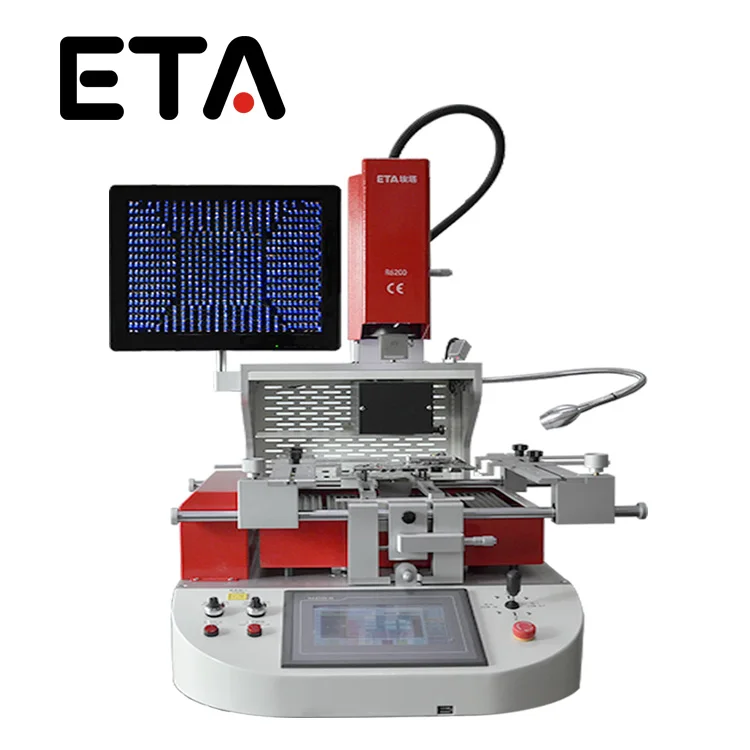

ETA Manufacture BGA Rework Station


BGA Rework Station

1.top and bottom heaters are hot-air heating, the third IR heater is infrared heating, the top and bottom heaters can heat PCB from upper and bottom at the same time. temperature accuracy within ±3℃,there are multi segments can be set at the same time; IR preheating area is adjustable according to desire requests, to make PCB heating evenly.

2. it can heat PCB board and bga chips at the same time. And the third IR heater can preheat the PCB board from bottom, to avoid PCB from deformation during repair process. The top and bottom heaters heat independently;

3. choose high accurate K type close-loop thermocouple, and PID parameters automatic adjustment system;it can show seven temperature curves and the millions of groups data can be saved through U storage device,with instant curves analysis function and analyzing BGA temperature at any time; the sensor is for precise temperature testing.

Specifications
BGA Rework Station
PCB size
Max 410×370 mm Min 65×65 mm
BGA chip size
Max 80×80mm Min 2×2 mm
Total Power
Max 5200W
Power
AC 220V±10% 50/60 Hz
Temperature control
K-type thermocouple (Closed Loop), independence temperature control
Dimension
L640×W630×H900 mm
Weight
75kg
Company

     ETA is the leading SMT factory solution provider in China ,offering professional SMT factory building advice and service.We have 22 years experience about SMT factories,offering full solution for global clients with our advantaged sources in China. Our core technology team members are all from Foxconn,Huawei,Siemens and other companies,we not only provide a full set of equipments,we also provide full smt technical support and services,Besides we give customers more reasonable and professional suggestions.We have already helped many customers to establish factories in LED, TV, Phone, DVB, EMS and other filed around the world ,we are worthy of trust!


Main Products:SMT LED Pick and Place Machine,SMT LED Reflow Oven,SMT LED Stencil Printer,SMT Production Line,LED Assembly Line,SMT LED Machine.


Successful Experience:
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.

Certifications
Exhibition
Our Service

ETA Engineers installed in Russia

ETA Engineers installed in Iran

ETA Engineers installed in Vietnam

ETA Machine for mobile phone

ETA Machine with YAMAHA

ETA Machine for HUAWEI

Eta's customer in 35 countries around the world

1.We have been helping customers to build a lot of new factories around the world.

2.Training more than 500 experts and technician for customers.

3.Became the most reliable Chinese partner for you.

Packing & Delivery
Packaging
Size
5500 (L) * 1690 (W) * 1700 (D)
Weight
Approx.2250KG




Details
The normal package is vacuum wooden box(Size: 5500L*1690W*1700H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.
