Automatic PCB Translational NG/OK SMT Unloader for SMT Production Line

FOB Reference Price:Get Latest Price
$8,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Machine Size (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETA
Model Number:
NOUL-M
Name:
Dual-rails SMT Unloader
Usage:
LED,SMD
Warranty:
1 Year
PCB Direction:
L to R or R to L
Packing:
Wooden Case
Control System:
PLC
Diemsion:
1730*1530*1250mm
Power:
Max 300 VA
PCB Size:
50*50-330*250
Time Feed PCB:
Seconds 6 Approx. or Specify
Supply Ability
Supply Ability:
as your needs
Packaging & Delivery
Packaging Details
Wooden Case
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Product Description

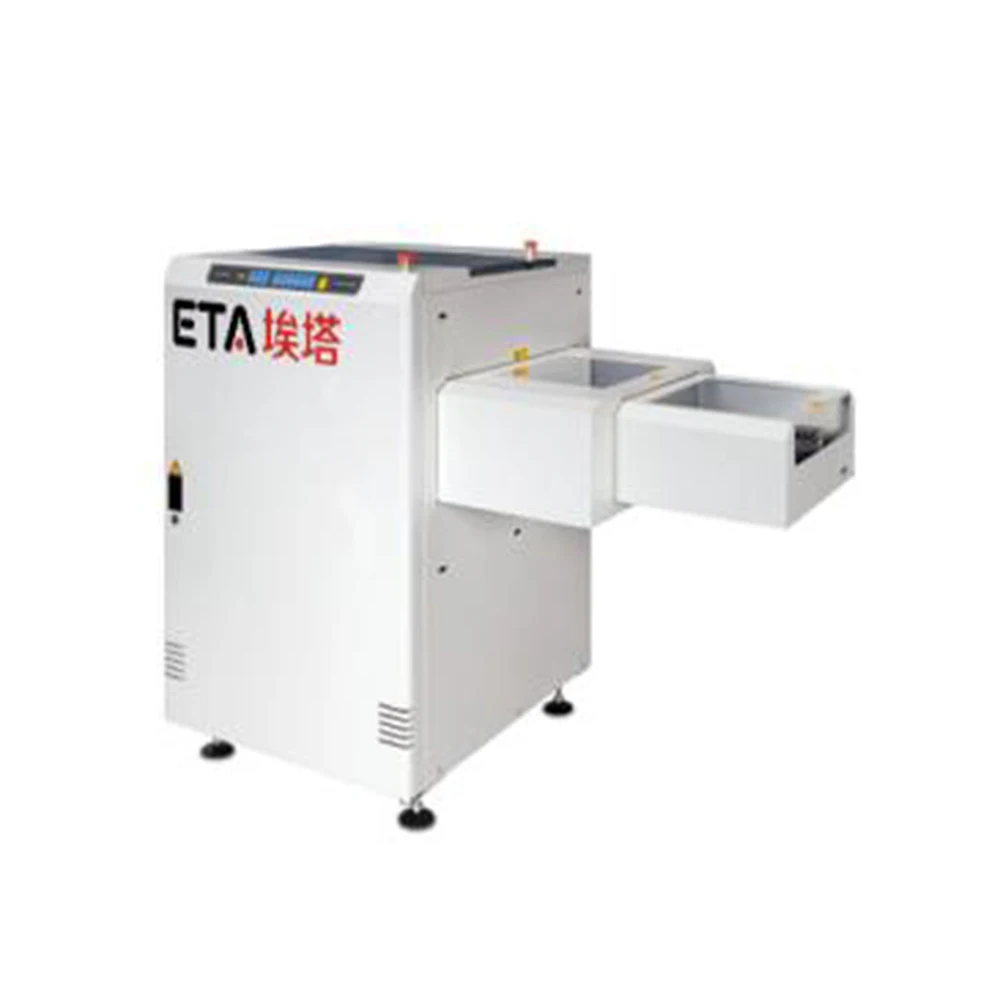

Automatic PCB Translational NG/OK SMT Unloader for SMT Production Line

Feature:

1.This device is used to receive board SMT circuit board production line operation, suitable for receive NG board and OK board after soldering.

2.'soft touch' LED control panel or touch screen can be selected.
3.Top&bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.

5.Automatical diagnosing fault code display function.
6.Wear-resistant cable and have long service life.
7.Compatible SMEMA interface.

Specification
Model
NOUL-M
NOUL-L
NOUL-LL
NOUL-XL
Dimension(mm)
1730*1530*1250
2065*1630*1250
2660*1760*1250
2660*1900*1250
PCB Size(mm)
50*50-330*250
50*50-445*330
50*50-530*390
50*50-530*460
Rack Size(mm)
355*320*563
460*400*563
535*460*563
535*530*563
Time Feed PCB
Seconds 6 Approx. or Specify
Indexing Pitch
10.20.30.40mm or Specify
Control System
PLC
Power
Max 300 VA
Air Supply
4-6bar, 10ltr/Min Max
Transport Height
900±20mm(or Customer Specified)
PCB Direction
L to R or R to L
Communication
SMEMA for Both In & Out
Power Supply
1 PH AC 220V 50/60Hz (Option:110V to 380V)
Weight
340KG
380KG
420KG
460KG
