Stable Fully Auto SMT PCB Stencil Printer for China Leader Manufacture ETA

FOB Reference Price:Get Latest Price
$29,999.00 - $59,999.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
ETA-1200 ETA-1500 ETA-4034
Gross Power:
1.5KW
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
as per customer requirement (Min. Order: 1 Pieces)
Customized logo (Min. Order: 1 Pieces)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Color & Page:
solder paste printing
Certification:
CE
Usage:
PCB board
After-sales Service Provided:
Online support, Field installation, commissioning and training, Video technical support
Plate Type:
Screen Printer
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
ETA
Automatic Grade:
Automatic
Voltage:
AC 220±10%
Dimensions(L*W*H):
2220(W) x 1220(D) X1500(H)mm
Weight:
1500Kg
Application area:
LCD TV,STB,LED,
Printing speed:
high precision
Control system:
PC
AIR PRESSURE:
4~6Kg/cm2
Operation:
Simple
Squeegee pressure:
0-15kg programmable control
Operation Temperature:
-20°C ~ +45°C
Operation Humidity:
30%~60%
Squeegee Speed:
10~200mm/sec
Cleaning system:
Dry, Wet, Vacuum
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Vacuum wooden package , container
Port
Shenzhen, China
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description

ETA Ful-auto Circuit SMT Solder Paste Screen Printer With Full Automatic PCB Printer and Manual Solder Paste Printer

Product Description

ETA Smt Stencil Machine  ETA-1200 can cater for PCB size up to 410mm x 310mm comingwith many high performance and useful features such as APC (Automatic Pressure Check); Swappable Monitor Position; 2D inspection Function as standard.

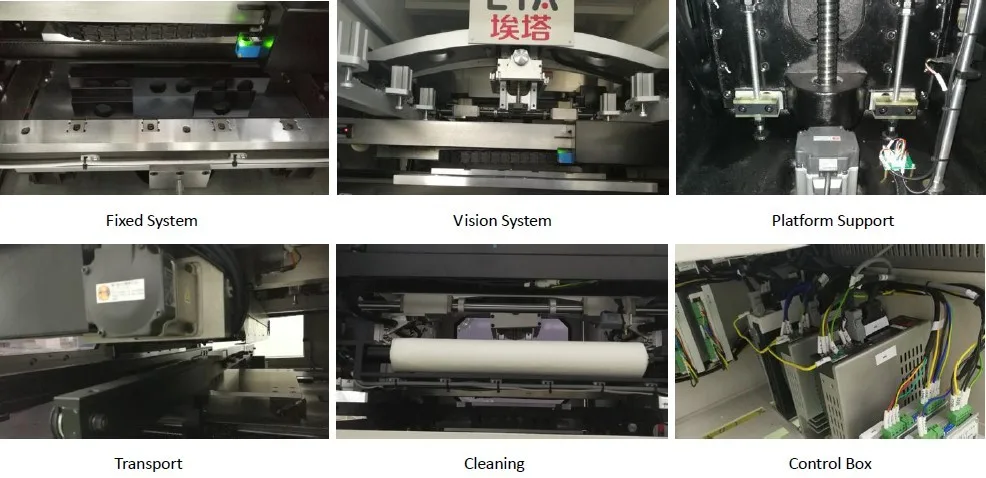

Main Features

■ Suspended print head with programmable pressure automatic adjustment system

a) Programmable pressure automatic adjustment system support visible pressure values of front and rear squeegees and ensures accurate pressure control.

b) Pressures of front and rear squeegees are separately adjusted, to compensate pressure imbalance caused by fatigue deformation of squeegee to prevent from different printing quality in front and rear.

■ Standard stainless steel squeegee, unique design to improve the lifespan of squeegee blade.

■ ETA Vision alignment system

■ Table X/Y/θ automatic calibration system.

■ PCB clamping and support system. .

a) Magnetic pins;

b) PCB flexible side clamping system to ensure no bending and deformation during PCB clamping

c) Strong vacuum suction (optional)

d) Elastic Z-direction pressing tablets (optional)

e) Flexible automatic pins(optional)

■ NC slide way adjustment for conveyor width and speed.

■ Dry-type, wet-type and vacuum-type with arbitrary combination for stencil cleaning system.

■ System Requirements: IPC (Industrial Personal Computer) with Windows XP System

■ Built-in software diagnosis system.

■ Support 2D, SPC software function.

■ Standard SMEMA link port.

Specifications
SMT Stencil Printer Machine
Squeegee Speed
10~150mm/sec
Squeegee Pressure
0~15kg
Squeegee Angle
60°(standard)/55°/45°
Squeegee Type
Steel(standard), rubber
Stencil Separation Speed
0.1~10mm/sec (Programmable)
Cleaning System
Dry, Wet (Programmable)
Table Adjustment Ranges
X:±4mm;Y:±6mm;θ:±2°
Air Required
4~6kg/cm2
Power Input
AC: 220±10%, 50/60HZ, 1.5KW
Control Method
PC Control
Machine Dimensions
1220(L)×1410(W)×1550(H)mm
Machine Weight
Approx. 1000kg
Our Company

ETA is the leading manufacturer for smt machines and solution with 23 years' experience in China. And we are aslo the only Chinese SMT supplier for Huawei factory in China.


Successful Experience:
Eta's customer in 35 countries around the world
※ We have been helping customers to build a lot of new factories around the world.
※ Training more than 500 experts and technician for customers.
※ Became the most reliable Chinese partner for you.

Certifications
Exhibition
Packing & Delivery
Packing Method:
※ Standard wooden package

Shipping Way:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.

Delivery Time:
※ 35 Days
Customers' Feedback
Our Customers
FAQ

1.Are you a trade company or a manufacturer?

=》OEM & ODM service are available.

2.What is your delivery date?
=》The delivery date is about 35 days after receipt of payment.

3.What is your payment terms?
=》30% deposit in advance and 70% balance before shipment.

4.What your main customers?
=》Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
